Περιγραφή

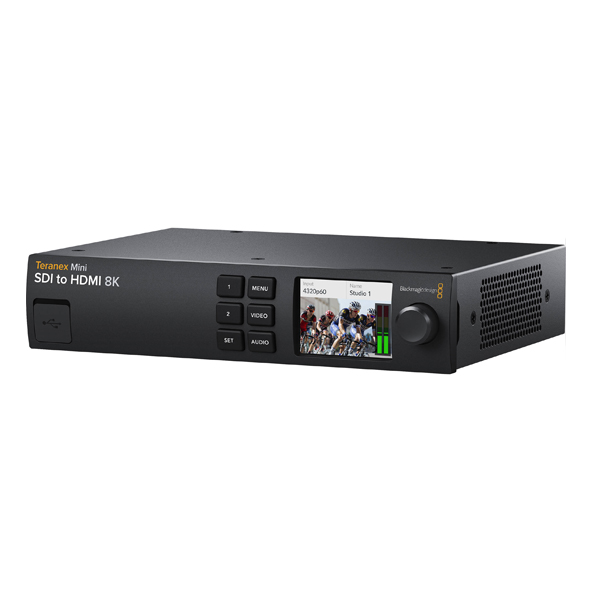

Blackmagic Design Teranex Mini SDI to HDMI 8K HDR
Οι πιό ευέλικτοι μετατροπείς στον κόσμο!
Προηγμένη λύση παρακολούθησης HDMI 8K για τη μετατροπή πηγών SDI σε HDMI σε όλες τις μορφές HD, Ultra HD και 8K μέχρι 4320p60. Περιλαμβάνει 4 συνδέσεις εξόδου HDMI 2.0, ενσωματωμένο down converter, HDR formats, 33 point 10‑bit RGB, ενσωματωμένη κυματομορφή, parade, vector και histogram scopes, monitor calibration probe και πολλά άλλα.
Χαρακτηριστικά
| Connections | |
| SDI Video Inputs | 4 x 12G-SDI HD/2K/4K/8K auto switching. |
| SDI Video Outputs | 4 x 12G-SDI loop output. |
| HDMI Video Outputs | 4 x HDMI 2.0 type A connector with support for HD, UHD and 4K in single link or 4320p60 in Quad Link. |
| Analog Audio Outputs | 2 channels analog audio via RCA connectors. |
| Digital Audio Outputs | 16 channels of embedded audio on all SDI loop outputs and 8 channels on the HDMI outputs. |
| Embedded Audio Support | 8 channels embedded on the HDMI |
| Multi Rate Support | 1.5G, 3G, 6G, 12G, 2SI Dual Link 12G‑SDI, 2SI Quad Link 12G‑SDI, Square Division Quad Link 12G‑SDI. |
| Updates and Configuration | USB-C or Ethernet. |
| Reclocking | Yes |
| Scopes | |
| Scopes | Waveform, RGB/YUV Parade, Vector, Histogram |
| Viewing Modes | Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDR graticules. |
| Software | |
| Software Control | Mac OS X™ and Windows™ software upgrade via USB‑C or Ethernet. |
| Internal Software Upgrade | Via included updater application. |
| Operating Systems | Mac 10.13 High Sierra, |
| Mac 10.14 Mojave or later. | |
| Windows 8.1 or Windows 10. | |
| Settings Control | 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display. |
